0.47″ | 12mm E700 High Density Eva Foam Hardness 70-75° Shore C

Item #: SP70C.7075.12MM

Price range: $24.00 through $35.00

Important Shipping Information E700 EVA Foam is a high-density, rigid material that can be difficult to roll, particularly in thicker gauges. Large sheets often require bulky or oversized packaging, which may result in higher shipping costs due to dimensional weight charges imposed by carriers. In some cases, shipping charges may exceed the cost of the material itself. This is common with large or thick EVA foam sheets because shipping rates are based on package dimensions as well as actual weight. For large orders, multiple sheets, please email us at info@avetcoinc.com for a shipping quote before placing your order.
SKU: SP70C.7075.12MM Categories: , , Brand:

Description

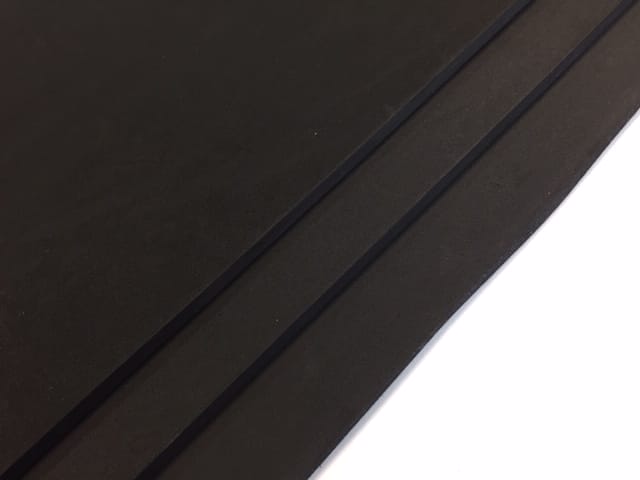

E700 High-Density EVA Foam is a closed-cell foam (70–75° Shore C) made from Ethylene Vinyl Acetate and blended copolymers. Chemically cross-linked for a uniform cell structure, it’s semi-rigid, shock-absorbing, and buoyant, with strong resistance to water, UV, and cracking. Easy to shape with heat, glue, and paint, with a smooth finish on both sides, it’s a versatile pick for footwear (midsoles, platforms), sports equipment, packaging, flooring, and cosplay props and costumes. Available in a range of thicknesses and densities.

E700 High-Density EVA Foam is also available in 2 mm through 40 mm — see the full 60-75° Shore C high density range.

Orthotic, orthopedic and diabetic use

At 12mm this is bulk stock — the gauge you reach for when the build starts from a block rather than a sheet. At 70-75° Shore C it carries height and correction together without collapsing under load. Orthotic labs, pedorthists and shoe repair shops use it for:

  • Sole and heel buildups, including larger leg length discrepancy raises in one piece
  • Rocker soles and wedged sole units ground from solid stock
  • Deep total-contact shells and heel cups with generous grinding allowance
  • Charcot and total-contact cast footwear, where accommodation needs real depth
  • The structural base of a multi-density diabetic build, with room left for softer layers on top
  • Midsole blanks, filler and bottoming stock in orthopedic footwear and shoe repair

Closed-cell, so it does not soak up perspiration or lose thickness to it. It grinds and bevels to a clean edge, heat-forms over a positive cast, and takes contact cement well. Finish it with a softer top cover such as our 2mm 25-30° Shore C EVA — the firm sheet controls, the soft sheet comforts.

Uses / Suitable For:

  • Footwear, midsoles and insoles
  • Orthotics, posting and orthopedic footwear
  • Sports and athletic equipment
  • Packing and case inserts
  • Flooring
  • Props and costumes for cosplay

Material Data

  • Material: EVA (Ethylene Vinyl Acetate) Grade C
  • Density: 220 kg/m³ (nominal)
  • Tensile Strength (KPa) L 2000-2600
  • Elongation (%) L 220-230
  • Peeling Strength (N/M) 3700-6000
  • Rebound (%) 32
  • Hardness: 70-75 Shore C
  • Compression Set % 34.0
  • Thickness: 0.47″ (12mm)
  • Origin: CN[/learn_more]
