Description

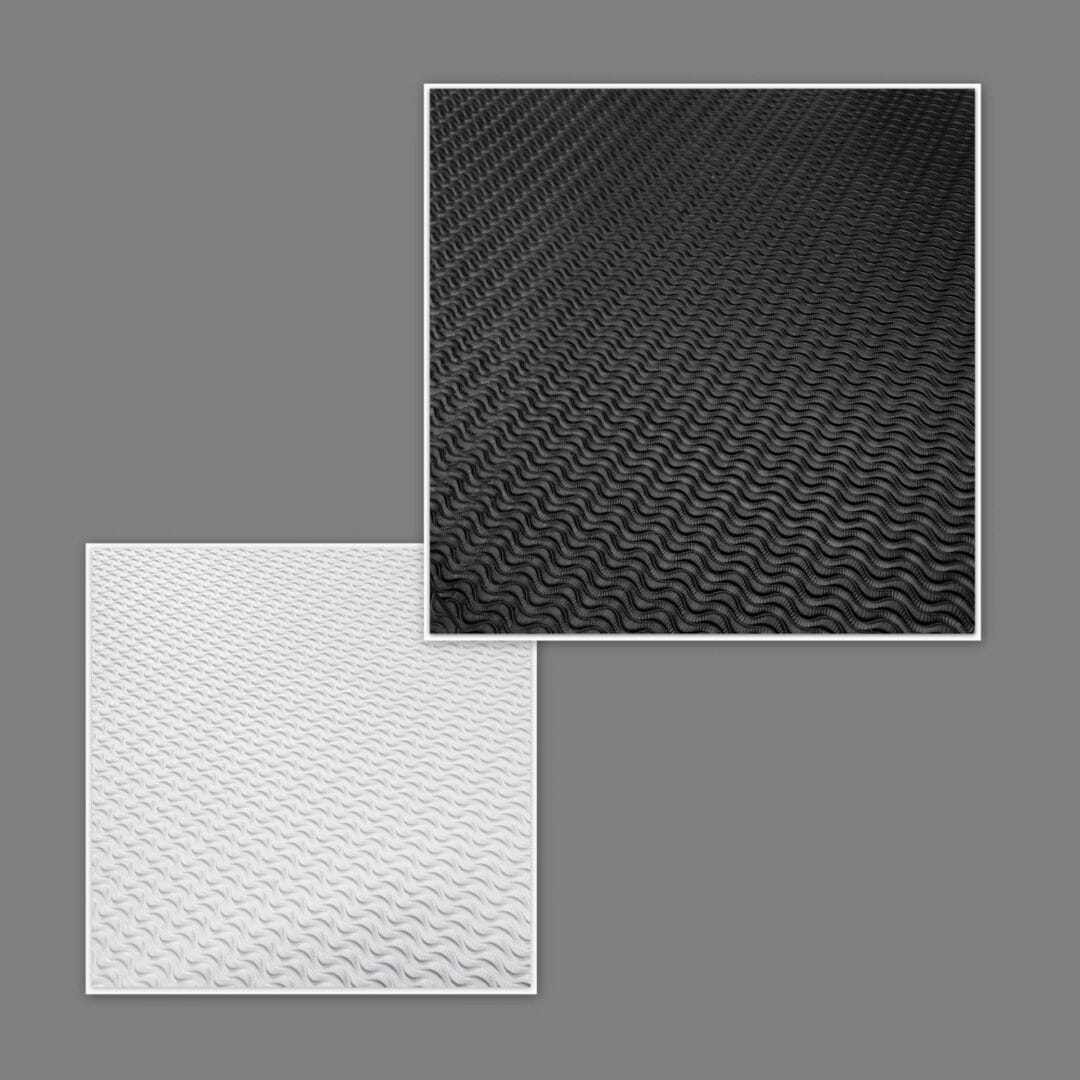

6 mm E700 EVA Foam Ripple Pattern – Hardness 70-75° Shore C
6 mm EVA in our E700 Grade A, embossed with a ripple pattern. At 240 kg/m³ this is the densest sheet in the patterned range, with a peeling strength of 3500-5000 N/M — it holds an adhesive bond well, which matters when it is laminated into a sole unit.
EVA foam is an elasticized closed-cell foam made from Ethylene Vinyl Acetate and blended copolymers, with a high level of chemical cross-linking. The result is a semi-rigid sheet with a fine, uniform cell structure — shock absorbing, buoyant, waterproof, and resistant to UV and cracking.
Best Uses
- Footwear midsoles and insoles
- Sports equipment and padding
- Flooring and mats
- Cosplay and craft builds
- Packaging and protective inserts
Technical Specs
- Material: EVA (Ethylene Vinyl Acetate), Grade A
- Grade: E700
- Pattern: Ripple emboss
- Hardness: 70-75% Shore C
- Density: 240 kg/m³ (0.240 g/cm³)
- Tensile Strength: 1900-2200 KPa
- Elongation: 160-180%
- Peeling Strength: 3500-5000 N/M
- Rebound: 29%
- Compression Set: 28.4%
- Sheet Size: 70″ x 38″ (+/-1″)
- Thickness: 6 mm (0.24″)
- Country of Origin: CN
Due to manufacturing and cutting tolerances, sheet length and width may vary by +/- 1″.
