Description

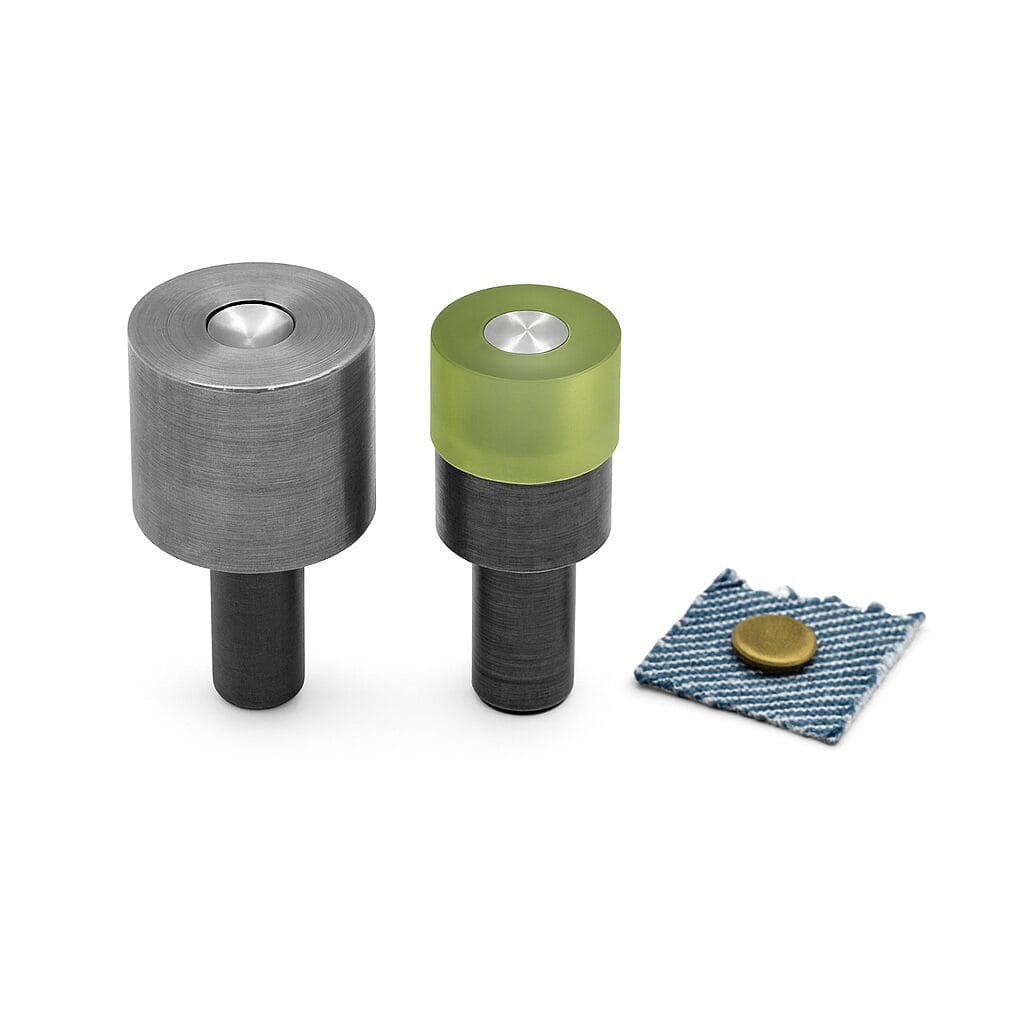

Rivet Tooling Set R002 – For Rivets R0026 & R0028
A two-piece die set for setting double cap rivets R0026 and R0028. A double cap rivet is finished on both faces, so neither cap can be marked during setting — the top die cups the visible cap while the bottom die supports the other. Designed for hand or kick press machines, giving a clean, accurate finish on leather, denim and more.
Product Details
- Material: Industrial-grade steel
- Application: For double cap rivets R0026 and R0028
- Machine Compatibility: Hand press and kick press
- Finish: Machined steel with polished setting face
- Country of Origin: China
Features
- Custom-fit for double cap rivets R0026 and R0028
- Built for long-lasting performance
- Protects the rivet cap during setting
- Works with leather, denim, canvas, vinyl & synthetics
- Eliminates hand alignment errors and tool damage

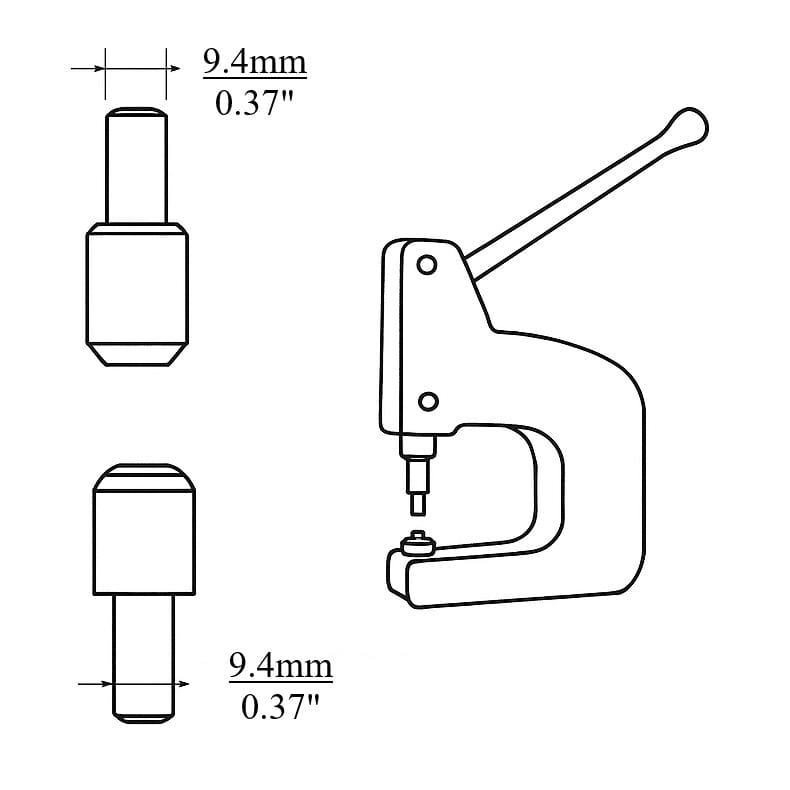

Technical Specs
- Top Insert:
9.4 mm diameter (approx. 0.37 inches) - Bottom Insert:
9.4 mm (approx. 0.37 inches)
Make sure to pair the die size with its matching rivet.
Rivet Options:
