Y7456-20mm Illustration Diagram- Avetco

Aug 6, 2025 | |

Y7456-20mm Illustration Diagram- Avetco

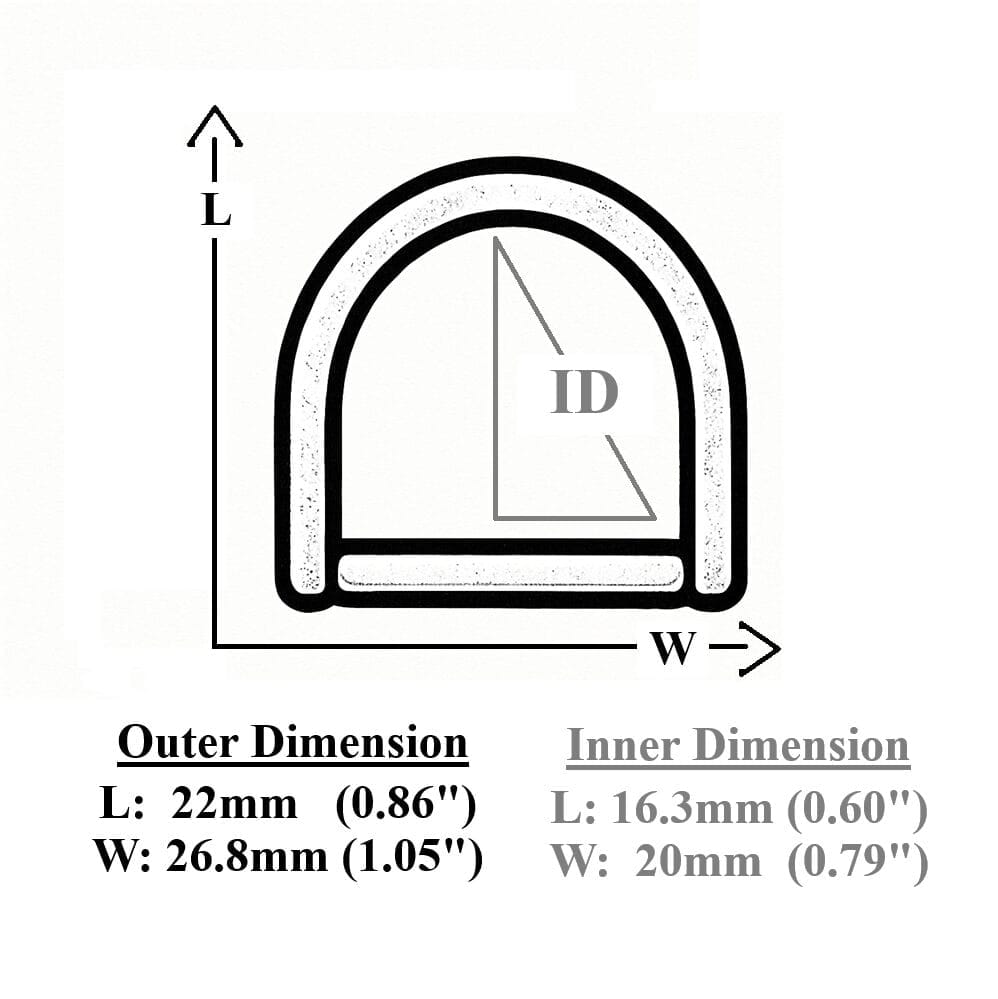

AVETCO illustration of a 20mm D-ring showing outer 22mm by 26.8mm and inner 16.3mm by 20mm dimensions.

This technical AVETCO drawing illustrates a 20mm D ring with outer measurements of 22mm L by 268mm W The inner space measures 163mm L by 20mm W Measurement lines directional labels and a triangular ID reference are shown for sizing clarity
