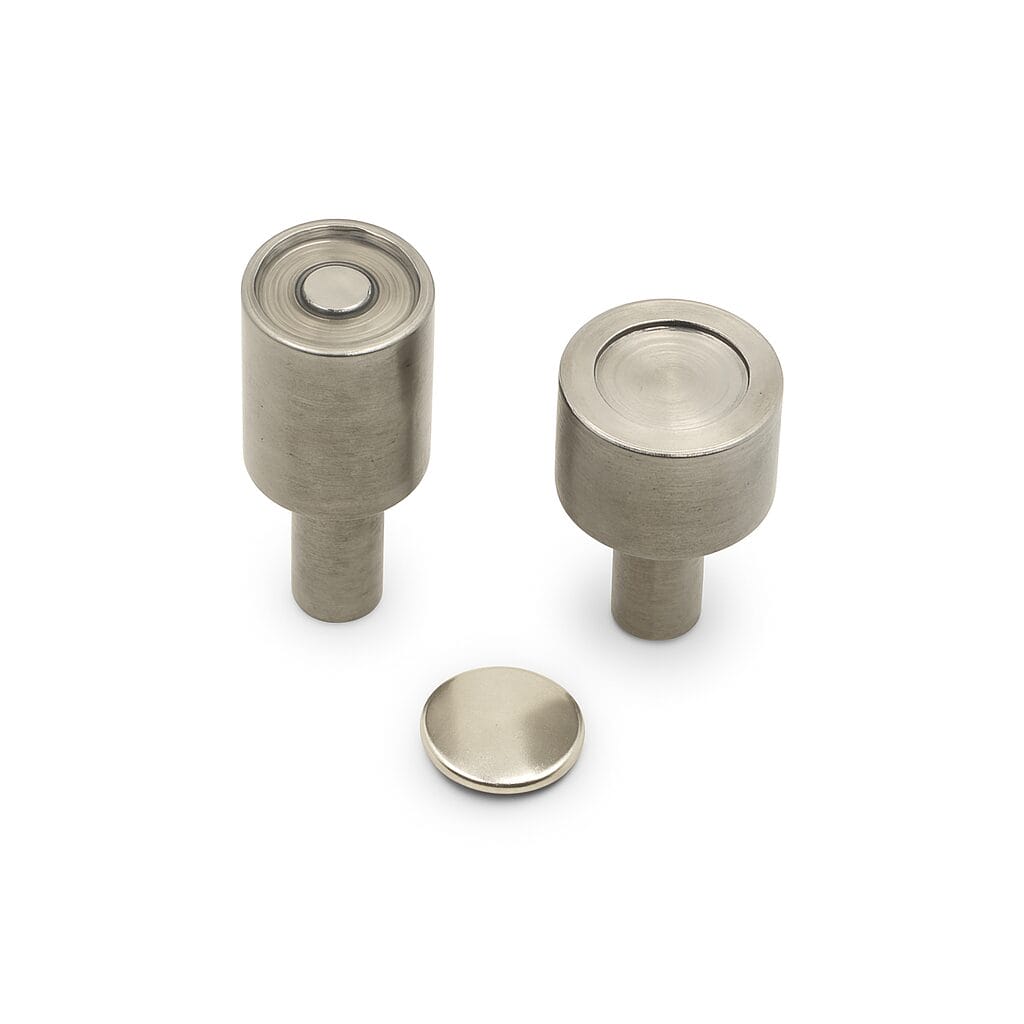

Die Setter for Flate Round Nailhead NH1

This NH1 die setter is designed for flat round nailhead  and provides clean, secure installation every time. Built from durable steel and compatible with standard hand and foot press machines, each die setter includes:

• 1 Top Die
• 1 Bottom Die
• Designed specifically for flat round nailheads
• Made for sizes: 3mm, 6.5mm, 8mm, 10mm and 14mm

Select your size from the dropdown menu above. Ideal for leathercraft, fashion, bags, belts, and more.

Why You Need It:
Flate Round Nailhead-style nail heads have a spiked back. Pressing them in by hand or with the wrong tool can cause misalignment or damage to your surface. This die setter applies firm, balanced pressure to drive the spike in straight while protecting the dome.

Make sure to pair it with the matching size of the Flate Round Nailhead.

👉 Flate Round Nailheads NH1– Pack of 200/500/1000

Die Setter for Flate Round Nailhead NH1 – Technical Specs

This die setter is designed for use with theFlat Round Nailhead NH1.

• Top Insert:
   • 9.4 mm diameter (approx. 0.37 inches)

• Bottom Insert Options:
   • 9.4 mm (approx. 0.37 inches)

✅ Features:

• Custom-fit for NH1 nailheads

• Made from high-quality steel for long-lasting performance

• Works with hand/foot presses .

• Compatible with leather, vinyl, canvas, and synthetic materials

✅ Die Setter Usage Instructions

This die setter is designed for use with a kick press.

• Place the bottom insert (dome cup) into the base of the kick press.
   This holds the dome of the Flate Round Nailhead  securely in place.

• Insert the Flat Round Nailhead upside down into the bottom insert.
   The dome sits in the cup, and the spikes point upward.

• Position your material over the exposed spikes.
   Line up your mark where the nailhead will go.

• Attach the top insert into the upper fitting of the kick press.
   The top die will press the material down and bend the spikes into it.

• Press firmly and evenly.
   The kick press drives the spikes through the material and folds them inward, locking the nail head in place.

PRO TIP: Make sure the Flat Round sits flat in the bottom insert and the spikes are facing straight up. The top insert bends the spikes inward — no hammering or manual bending needed.
