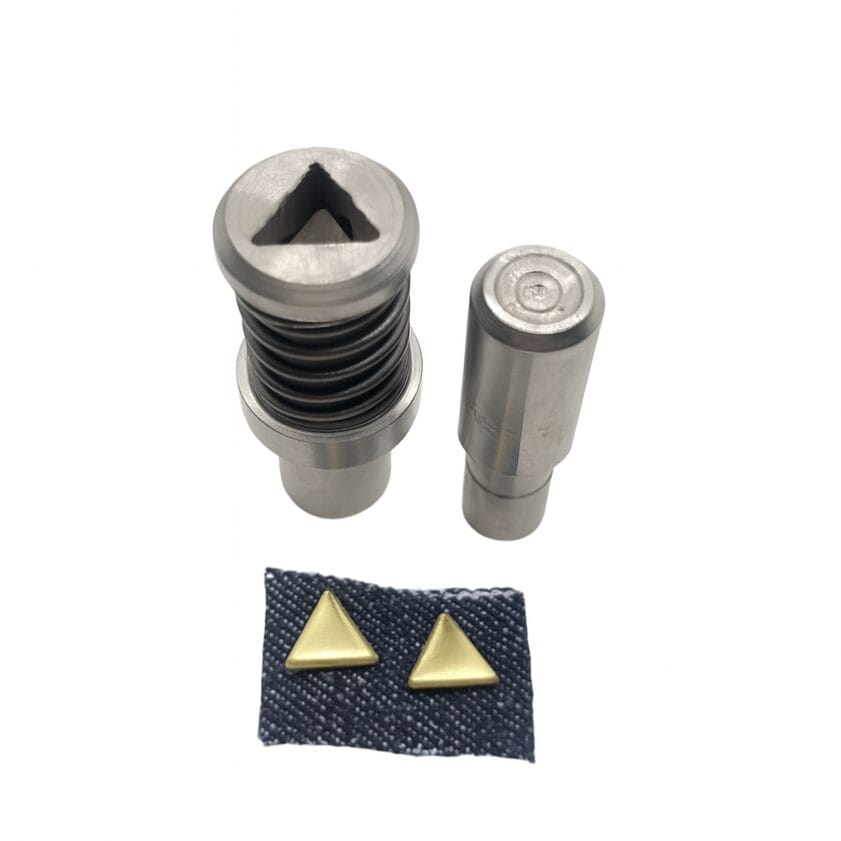

Die Setter for 10mm Triangle Nailhead NH32

Install Like a Pro with the Die Setter for 10mm Triangle Nailhead NH32

Get clean, secure results every time with this custom die setter designed to fit the 10mm Triangle Nailhead NH32. Whether you’re working with leather, canvas, or vinyl, this tool helps you install nailheads evenly — with no bending, splitting, or crooked domes.

Why You Need It:
Pyramid-style nailheads have a spiked back. Pressing them in by hand or with the wrong tool can cause misalignment or damage to your surface. This die setter applies firm, balanced pressure to drive the spike in straight while protecting the dome.

Make sure to pair it with the matching size of the Triangle Nailhead.

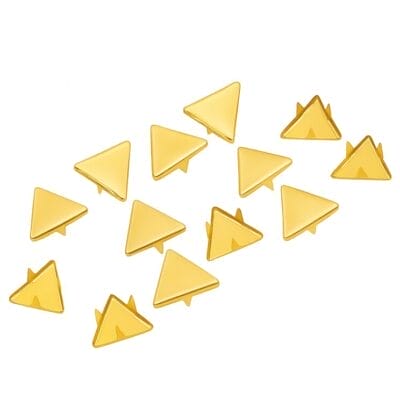

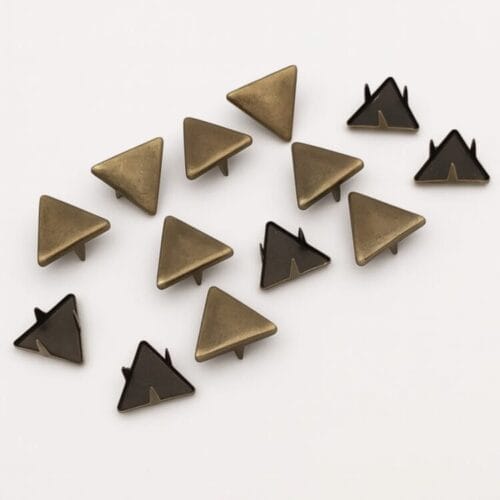

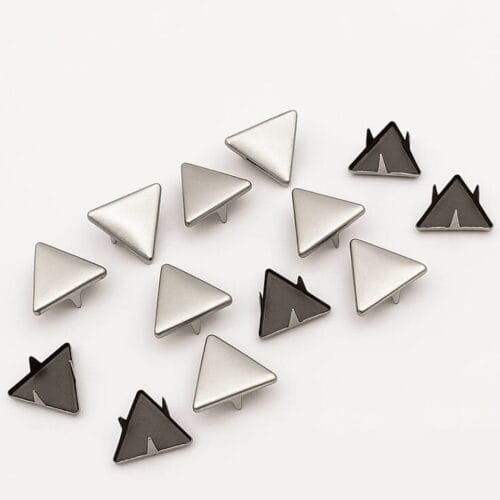

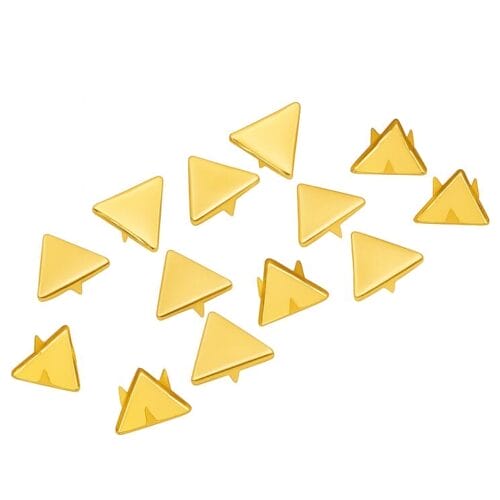

👉10mm Triangle Nailhead NH32– Pack of 200

Die Setter for 10mm Triangle Nailhead NH32 – Technical Specs

This die setter is designed for use with the Triangle Nailhead NH32.

• Top Insert:
   • 9.4 mm diameter (approx. 0.37 inches)

• Bottom Insert Options:
   •12.6 mm (approx. 0.37 inches)

✅ Features:

• Custom-fit for NH32 nailheads

• Made from high-quality steel for long-lasting performance

• Works with hand/foot presses .

• Compatible with leather, vinyl, canvas, and synthetic materials

✅ Die Setter Usage Instructions

This die setter is designed for use with a kick press.

• Place the bottom insert (dome cup) into the base of the kick press.
   This holds the dome of the Pyramid Nailhead  securely in place.

• Insert the Triangle Nailhead upside down into the bottom insert.
   The dome sits in the cup, and the spikes point upward.

• Position your material over the exposed spikes.
   Line up your mark where the nailhead will go.

• Attach the top insert into the upper fitting of the kick press.
   The top die will press the material down and bend the spikes into it.

• Press firmly and evenly.
   The kick press drives the spikes through the material and folds them inward, locking the nailhead in place.

PRO TIP: Make sure the Triangle sits flat in the bottom insert and the spikes are facing straight up. The top insert bends the spikes inward — no hammering or manual bending needed.
