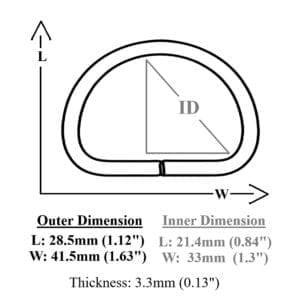

A labeled diagram for D ring Y7460 featuring
Outer Dimensions 285mm length 112 and 415mm width 163
Inner Dimensions 214mm length 084 and 33mm width 13
Thickness 33mm 013
The image highlights both outer and inner measurements with an ID triangle indicating internal usable space
