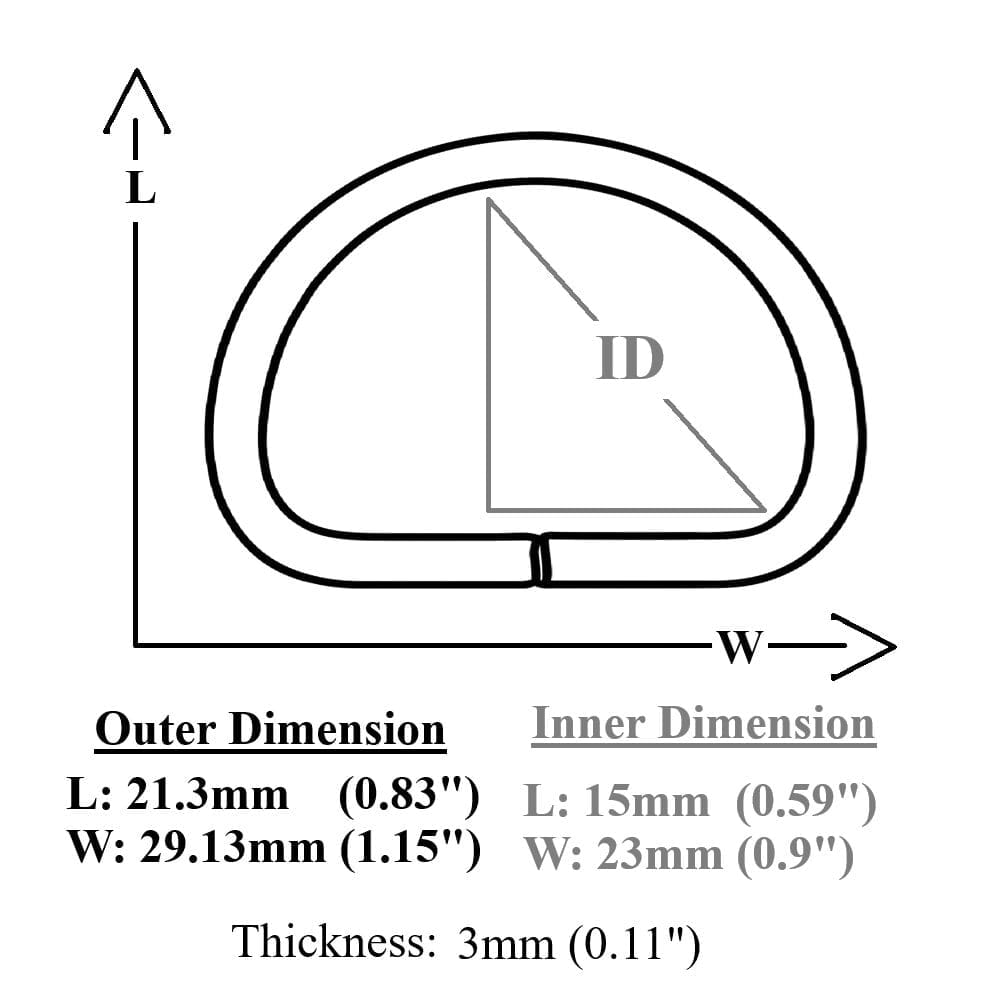

A detailed diagram for D ring Y7460 with
Outer Dimensions 213mm length 083 and 2913mm width 115
Inner Dimensions 15mm length 059 and 23mm width 09
Thickness 3mm 011
The D ring is illustrated with labeled measurement indicators and a triangular ID section representing the inner usable space
